PERFO Permeable Car Parking
Hockley Woods
Rochford, Essex, UK
Installed: Oct 2012
Client: Rochford District Council
Background:
PERFO-AK (Anchor) tiles used to provide a permeable parking area.
The PERFO-AK tiles were compacted into a layer of crushed stone (granite) which was prepared on top of the original sub-base which had been levelled.
PERFO-AK tiles were used to upgrade a badly worn and pot holed gravel car park to provide a smart looking porous parking area.

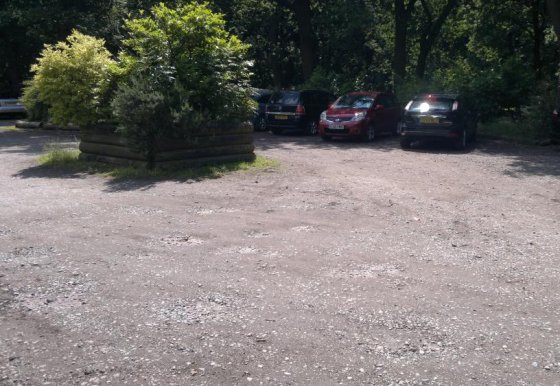

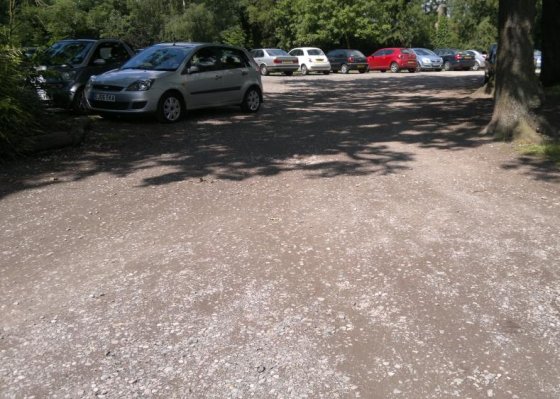

old gravel car park

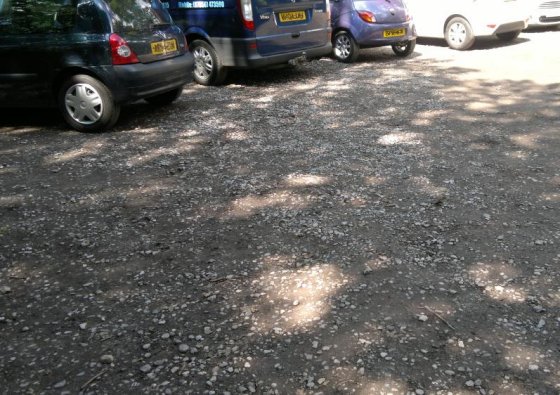

old pot holed uneven car park
gravel car park prior to PERFO installation

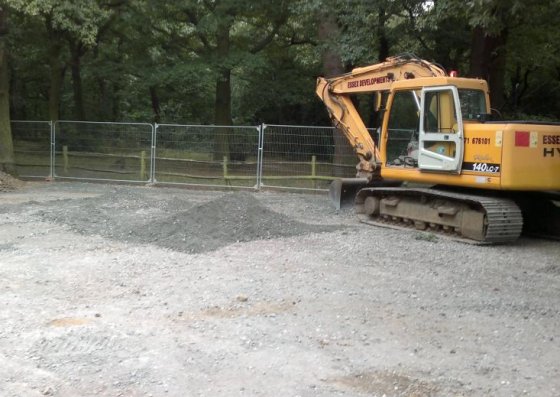

original surface repaired and levelled
crushed granite 10mm down to grit

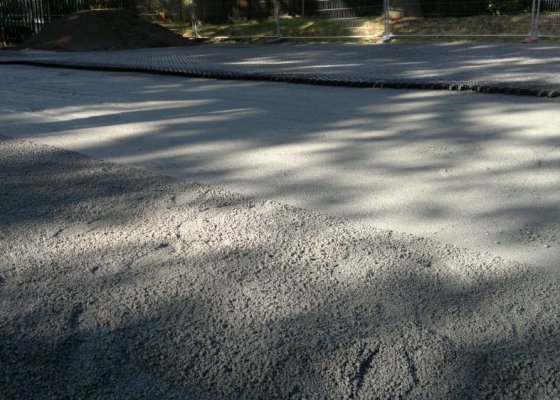

levelled lightly compacted bedding layer

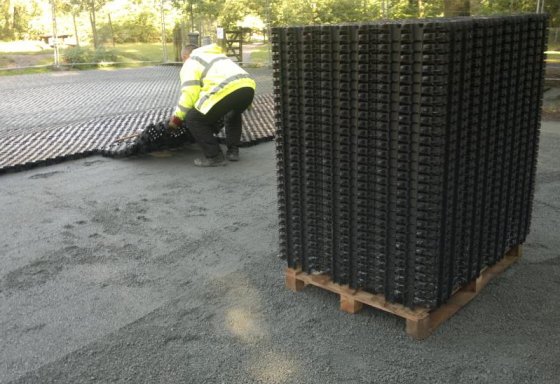

PERFO-AK tiles laid out on the bedding layer and clipped together
PERFO-AK tiles laid out on the bedding layer and clipped together
tiles are initially compacted into the bedding layer with a vibration plate

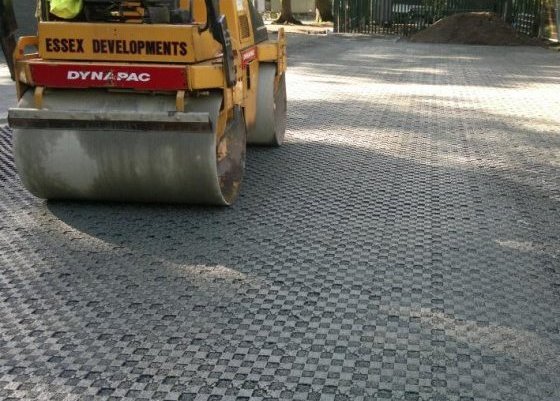

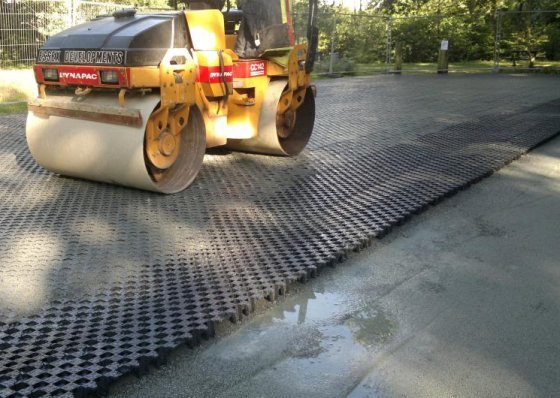

after the initial compaction the tiles are further compacted using a vibrating roller
PERFO tiles are fully compacted into the bedding layer

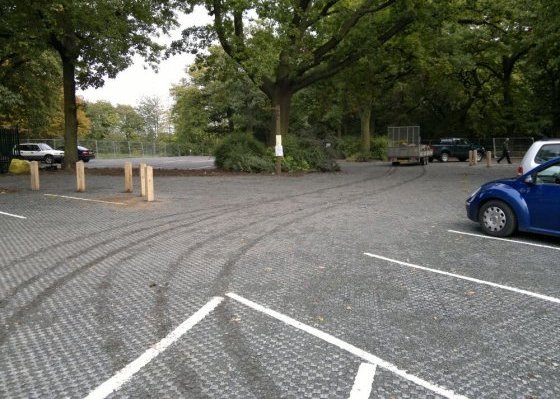

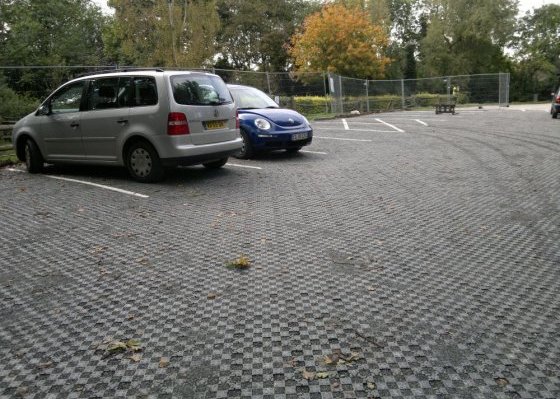

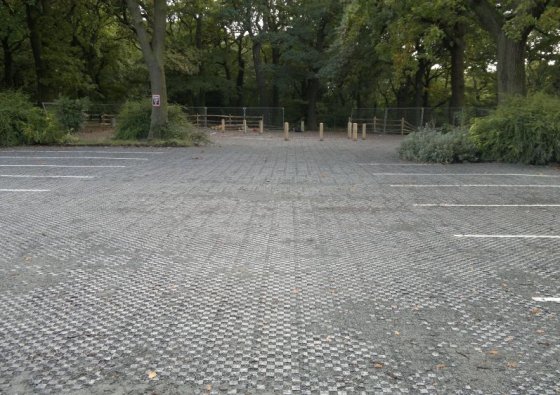

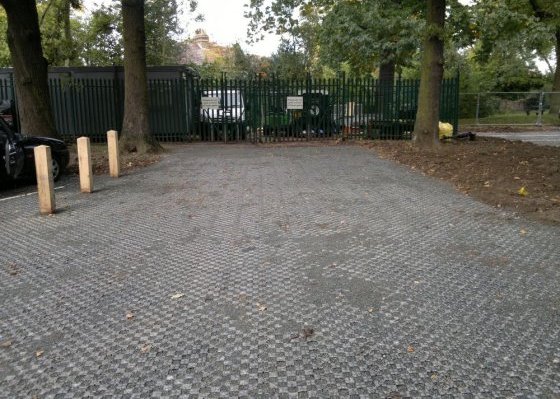

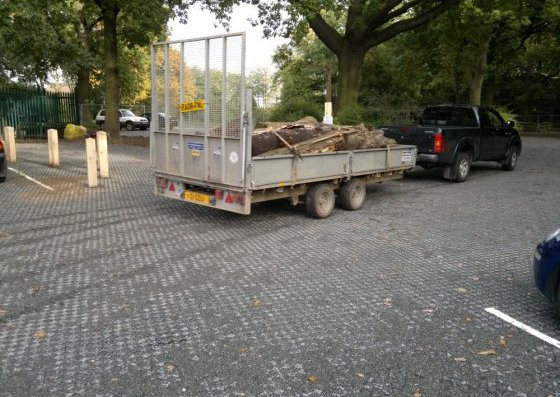

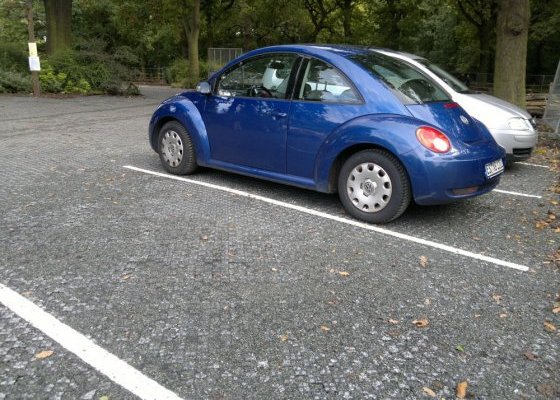

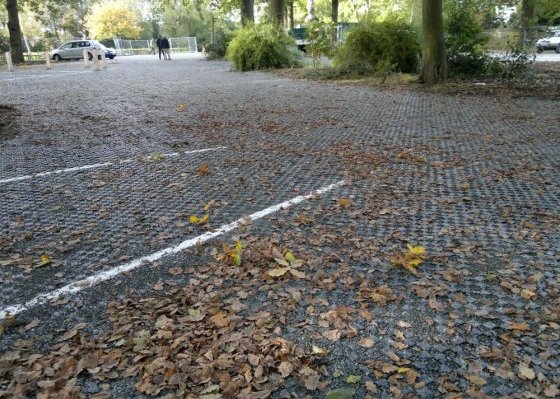

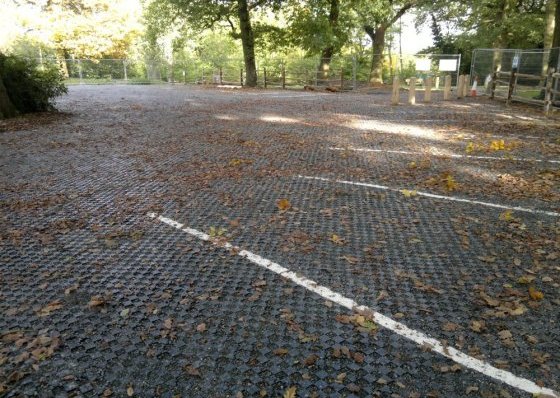

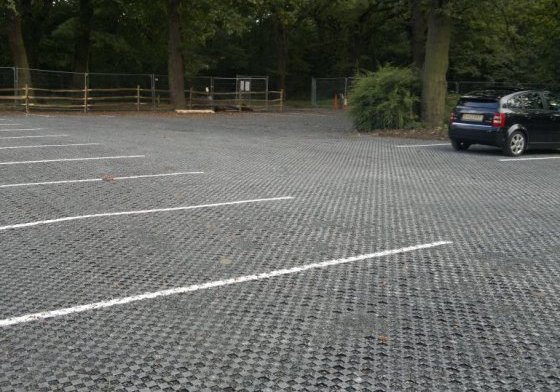

permeable car parking
permeable car parking
permeable car parking
permeable car parking
permeable car parking
permeable car parking
permeable car parking
permeable car parking
permeable car parking
permeable car parking
permeable car parking

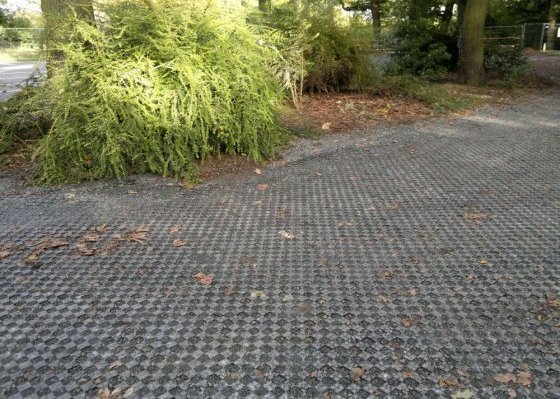

PERFO-AK tiles prevent ruts and the gravel being washed (pushed) into piles

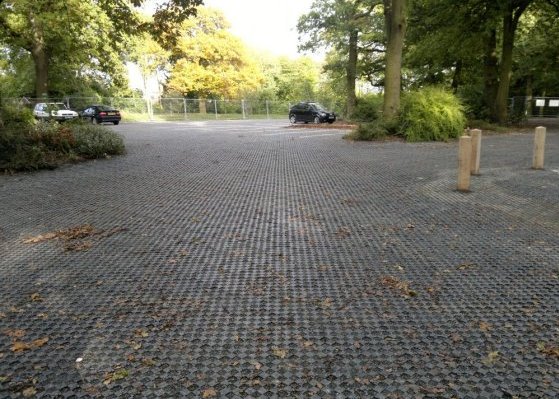

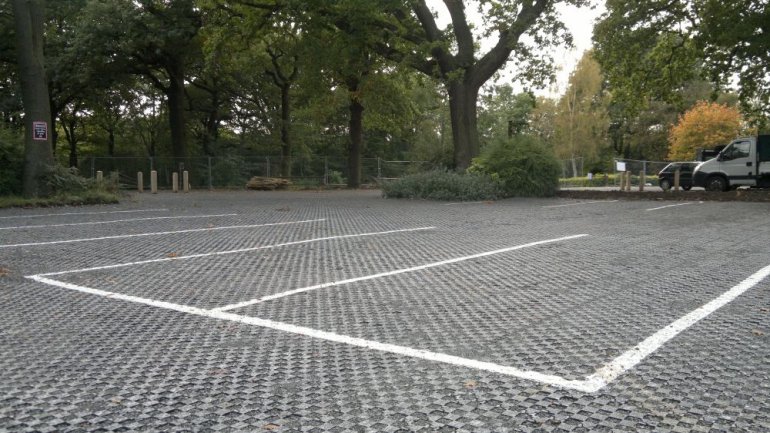

upgraded car parking area
